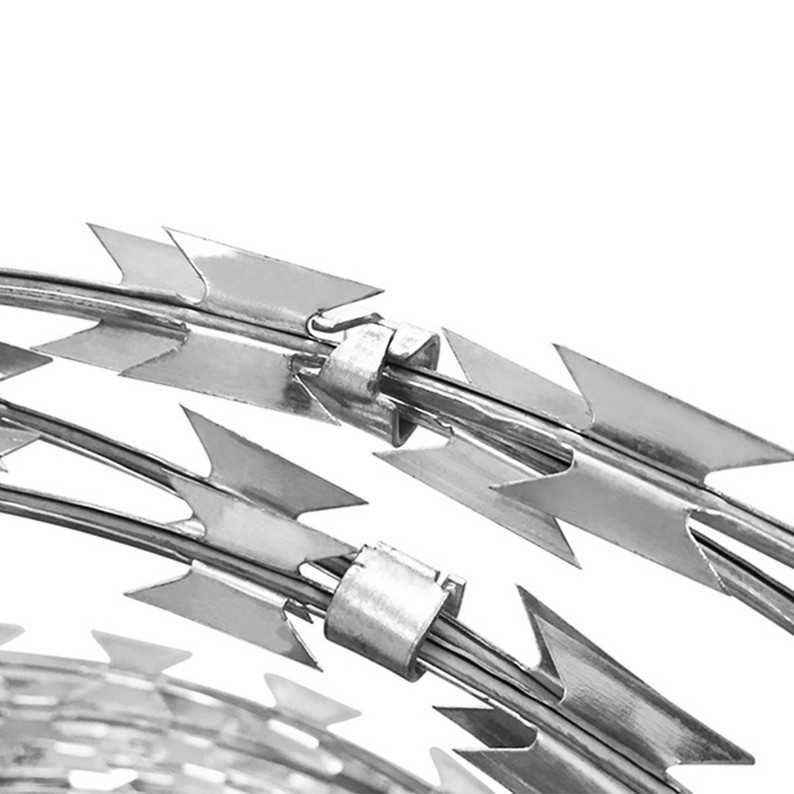

Galvanized Razor Wire for Safety Fence
| Wire Diamter | 2.0mm, 2.5mm |
|---|---|
| Length | 5m, 10m, 15m |
| Blade Type | BTO, CBT |
| Item No. | RAZ-001 |
| Brand | Orange wire |
| Outside Diameter | 450mm, 500mm, 600mm, 700mm, 800mm, 980mm |
Galvanized Razor Wire for Safety Fence
Description:
Razor wire is also called barbed tape or concertina wire, It consists of sharp blades and metal-cored wires. Usually used to prevent people or animals from passing through, it is a very effective and deterrent protective device. Razor wire fence or concertina coil has been widely used in residential walls, factory walls, bases and warehouses, prisons, mining areas, and border walls, etc.
Specifications For Razor Wire
Material: Carbon steel, stainless steel (304, 304L, 316, 316L, 430).
Surface treatment: Hot-dip Galvanizing, E-coating (electrophoretic coating), Powder coating (green, orange, blue, yellow, etc).
Wire diameter: 2.0-2.5mm.
Blade type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-25, BTO-28, BTO-30, CBT-60 and CBT-65.
Coil diameter range: 450mm-1500mm.
Clips per coil: 3-5 clips.
Loops per roll: 30-108 loops.
Stretch length of per roll: 10-25m.
Weight of per roll: 5-20kgs.
| Outside diameter | Circles No. | Length to be covered |
|---|---|---|
| 450 mm | 56 | 8-9 m (3 clips) |
| 500 mm | 56 | 9-10 m (3 clips) |
| 600 mm | 56 | 10-11 m (3 clips) |
| 600 mm | 56 | 8-10 m (5 clips) |
| 700 mm | 56 | 10-12 m (5 clips) |
| 800 mm | 56 | 11-13 m (5 clips) |
| 900 mm | 56 | 12-14M (5 clips) |
| 960 mm | 56 | 13-15 m (5 clips) |
| 980 mm | 56 | 14-16 m (5 clips) |
