Hexagonal Wire Stucco Netting
Hexagonal wire stucco netting, Self-furred zinc coated galvanized steel woven stucco netting is designed for use as reinforcement for cement wall systems.
| Hole Size | 1" x 1", 1-1/2" x 1-1/2" |
|---|---|
| Wire Diameter | 20 gauge, 17 gauge |
| Height | 36" |
| Length | 100', 150' |
| Item NO. | stu-hex |
| Brand | Orange Wire |
Hexagonal Wire Stucco Netting
1″ x 20 gauge
The 1″ (25.4mm) hexagonal mesh is formed with a reverse twist of 20 gauge (0.89mm) galvanized steel wire. 1″ stucco netting is furred at 3 inches (76mm) and 6 inches (152mm) on center horizontally and vertically, respectively.Hexagonal woven wire netting is specially for exterior wall coatings, can be supplied with paperback or not.
1 1/2″ x 17 gauge

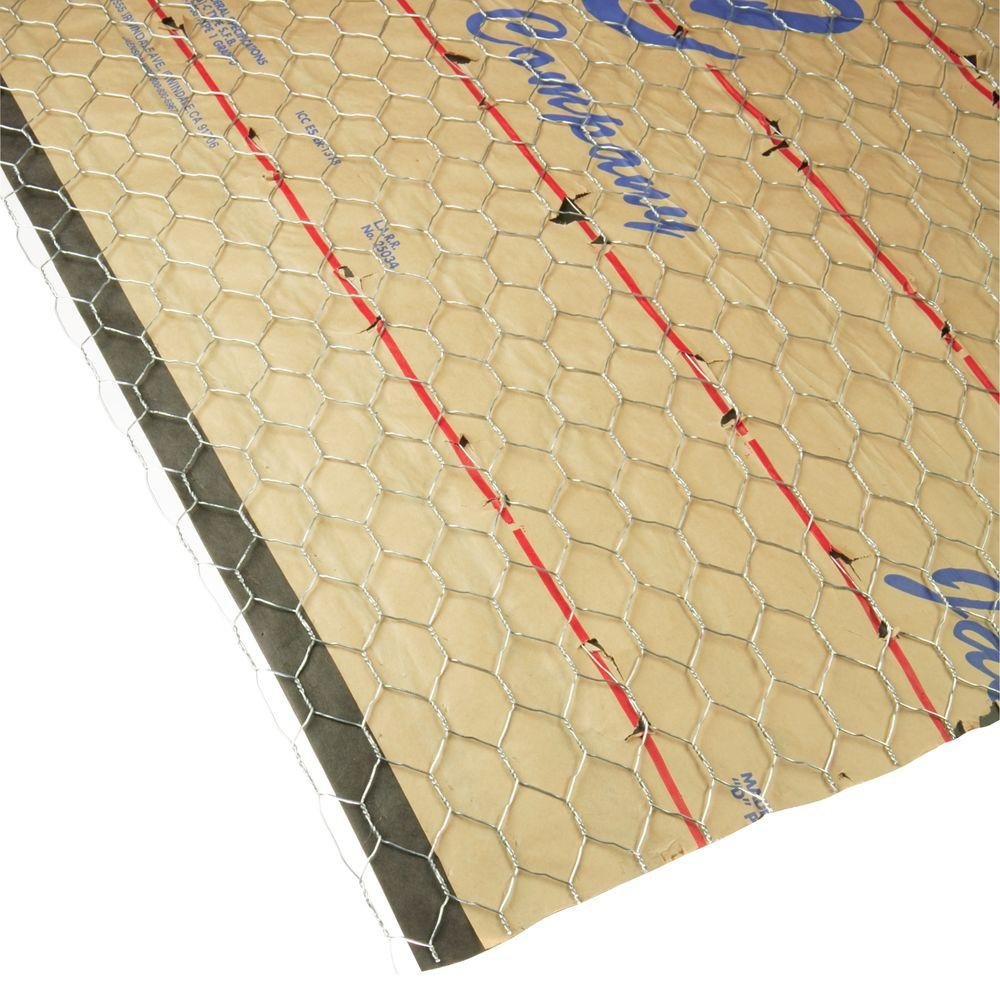

The zinc coated, galvanized woven wire Paperback Stucco Netting is made for building as reinforcement wire materials for cement, gypsum plaster, masonry veneer and ceramic tile. 1 1/2″ (38mm) x 17 gauge, 1/4″ self-furring woven wire in rolls, hexagonal mesh is formed with a twist of 17 gauge (1.38mm) galvanized steel wire. Paperback Stucco Netting is furred at 6″ (152mm) vertically.
20 Gauge
1″ x 20 gauge woven wire for reinforcement of one-coat modified cement-based plaster.
- 1″ hexagonal opening formed with a reverse twist for superior strength
- Redline fastening guidelines to ensure quick, easy and correct fastener placement
- Furred every 6″ longitudinally
AVAILABLE COATINGS: Galvanized wire for corrosion protection
ROLL SIZES: 36″ x 150′
PACKAGE: 32 rolls/pallet or 40 rolls/pallet
APPROXIMATE WEIGHT: 40 lbs/roll
FURRING CRIMPS: 1/8″
17 Gauge
AVAILABLE IN: 1-1/2″ x 17 gauge
AVAILABLE COATINGS: Galvanized wire for corrosion protection
ROLL SIZES: 36″ x 150′ or 36″ x 100′
PACKAGE: 18 rolls/pallet or 24 rolls/pallet
APPROXIMATE WEIGHT: 68 lbs/roll
FURRING CRIMPS: 1/8″
