Square Knot Field Fence (S KNOTS FENCE)
Wire Diamter | 2.0mm, 2.5mm, 3.0mm |
---|---|
Height | 3', 4', 5', 6', 7', 8' |
Length | 50', 100', 330' |
Item No. | hin |
Brand | Orange wire |

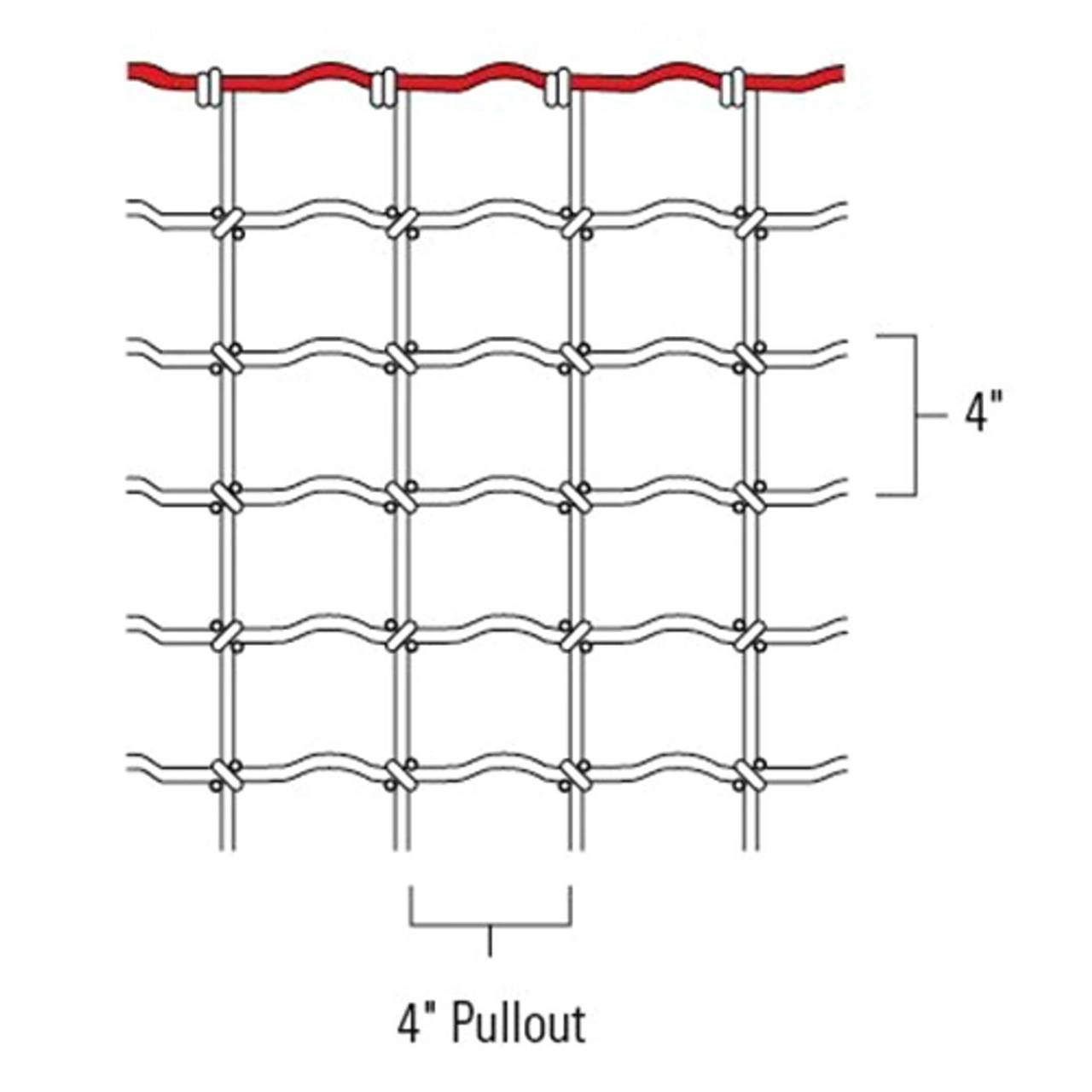

Hole Size | 4" x 4" |
Square Knot Field Fence (S KNOTS FENCE)
Description:
Square Knot Field Fence has s-shaped knots to form a tough & sturdy structure that stands up to impact from large animals without buckling or sagging. It is a type of anti climbing fence, suitable for goat, sheep and cattle keeping, commonly known as S knot fence.
S knot fence is made with a separate piece of wire to attach the line wire to the solid stay wire forming an impact resistant and very smooth knotted ring, ideal for the protection of livestock’s skin and strong enough to feeding animals.
Usage:
- Protect your investment with our most reliable confinement for cattle, hogs and other large animals
- Able to withstand the demands of corralling large animal herds
- Ideal for all terrains, as well as corrals and pastures
- Special wire crimps withstand even the most severe weather by allowing the fence to expand and contract
- Galvanized wire resists weathering as well as wear and tear
Product Details:
Material: high tensile wire
inner wire: 2.0mm,2.5mm or others
Color: silver or others
Mesh size: 10cm,15cm,30cm
Knot style: square deal knot
Hole shape: Rectangular
Wire gauge: 1.8mm-2.5mm
Surface: galvanized bright
Edge wire diameter: 2.0mm-3.2mm
zinc coating: 30-300g/square meter
Common Specifications of Square Knots Fencing:
Item Number | Approx. Wt./roll | Fabric Height (in.) | Roll Lenght (ft.) | Filler Wire Gauge | Top Wire Gauge | Bottom Wire Gauge |
S-1 | 260 | 39 | 330 | 9 | 9 | 9 |
S-2 | 276 | 49 | 330 | 9 | 9 | 9 |
S-3 | 295 | 47 | 330 | 9 | 9 | 9 |
S-4 | 202 | 32 | 339 | 11 | 9 | 9 |
S-5 | 232 | 39 | 330 | 11 | 9 | 9 |
S-6 | 264 | 47 | 330 | 11 | 9 | 9 |
S-7 | 181 | 39 | 330 | 11 | 9 | 9 |
S-8 | 201 | 47 | 330 | 11 | 9 | 9 |
S-9 | 141 | 32 | 330 | 12 | 10 | 10 |
S-10 | 161 | 39 | 330 | 12 | 10 | 10 |
S-11 | 183 | 47 | 330 | 12 | 10 | 10 |
